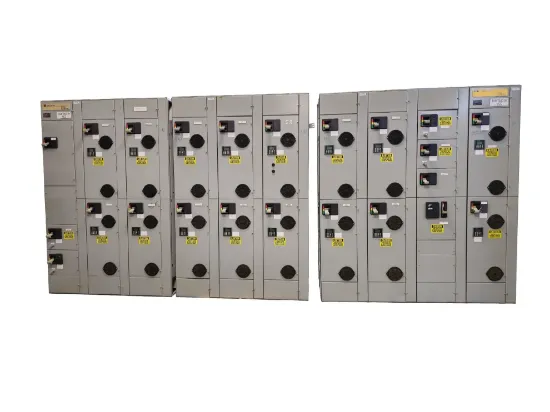

Eaton MCC 2100 Series

Previously installed Eaton MCC 2100 Series, comprising 10 sections with the following specifications:

• Electrical Specifications:

  • 3-phase, 3-wire, 60 Hz
  • Horizontal bus: 800A
  • Bus bracing: 42,000A
  • Short circuit current rating: 35,000A

• Physical Dimensions:

  • 20"D x 89"H x 200"L

• Components and Configurations:

  • Bucket size 14" x 36":

    • 9 units: 3-pole HMCP MCCB 30A with 7.5HP SV9000 VFD, keypad mounted in door, DV/DT filter, and line reactor.
    • 1 unit: 3-pole 50A HMCP MCCB with 15HP SV9000 VFD, keypad mounted in door, DV/DT filter, and line reactor.
    • 2 units: 3-pole 15A HMCP MCCB with 7.5HP SV9000 VFD, keypad mounted in door, DV/DT filter, and line reactor.
    • 4 units: 3-pole 7A HMCP MCCB with SV9000 VFD, keypad mounted in door, DV/DT filter, and line reactor.

  • Bucket size 13.5" x 11":

    • 1 unit: 3-pole 7A HMCP MCCB with size 1 Eaton W+200M1CFC and electronic overload.
    • 1 unit: 3-pole 25A HMCP MCCB.
    • 2 units: 3-pole 3A HMCP MCCB with size 1 Eaton W+200MLCFC and electronic overload.

  • Bucket size 13.5" x 18":

    • 1 unit: 3-pole 15A HMCP MCCB with size 1 Eaton forward/reversing W+200M1CFC and electronic overload.

  • Bucket size 13.5" x 29":

    • 1 unit: 3-pole HMCP3400 MCCB with trip unit KT3400T.

Viewing is available by appointment at our Sudbury location.
